HVAC Tools

Heating Ventilation & Air Conditioning

FCU Selection

Video Demo
<
Description

This is an excel automation that will perform unit selections automatically based on manufacturer data and fill in the Municipality Summary Sheet and FCU Schedule.

We can change the layout of the municipality and FCU as per your requirements.

CAD2HAP

Video Demo
Screenshots
Description

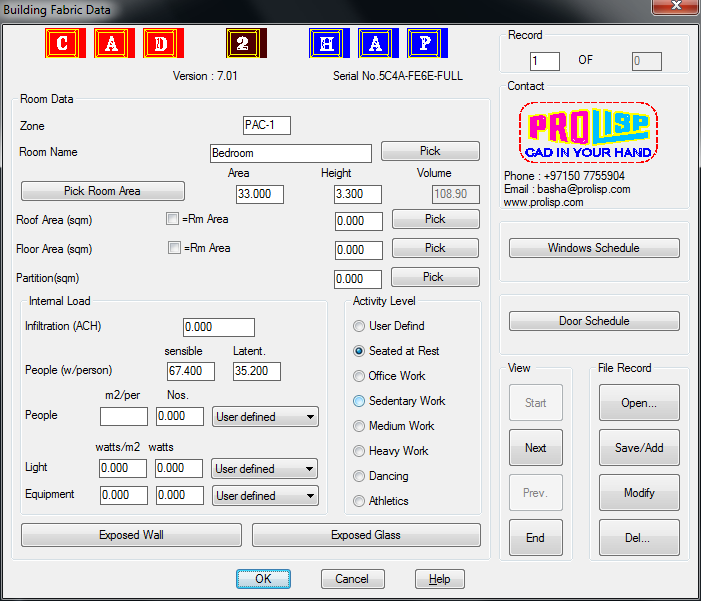

This calculates the Building Fabrication data such as walls, windows, roof, internal gains etc. from AutoCAD and it exports this to the HAP format .gbxml (which can be then imported by HAP) or you could export it as excel.

Double Line Duct

Screenshots
Description

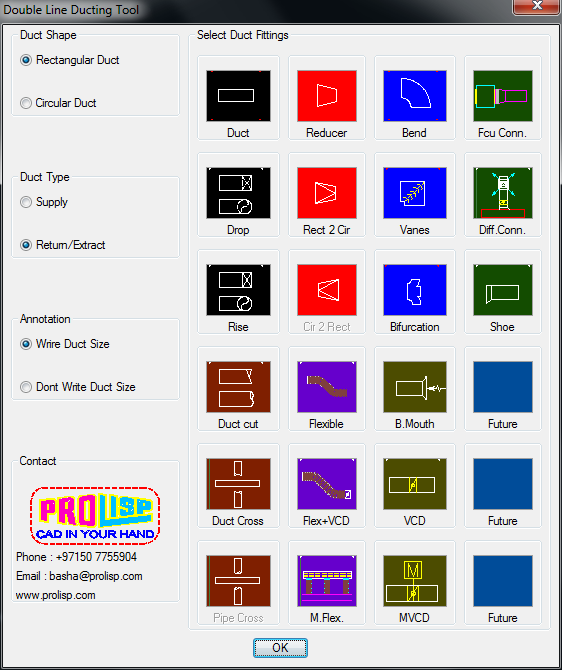

This program can draw ducting in double line with sizing including reducer, bend, vanes, bifurcation etc.

Ductulator

Screenshots
Description

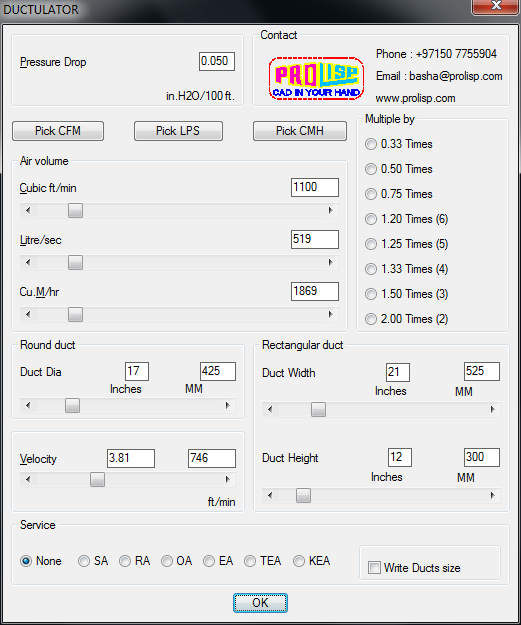

This program calculates the Duct size value based on Pressure Drop and Air volume.

Slot Diffuser Connection

Video Demo

Screenshots
Description

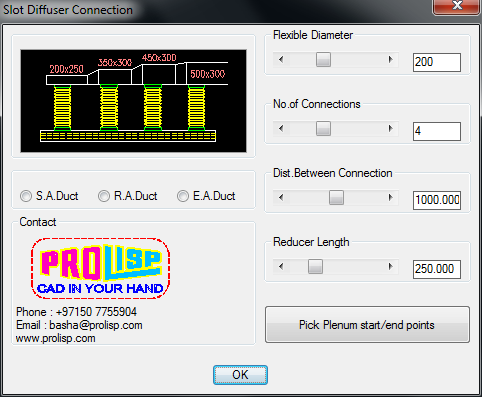

The Slot Diffuser program/tool writes the size of the ducts using Ductulator.
